DLQ 超級大電流電感

DLQ2918
DLQ2918
超級大電流電感

組合設計,立式堅固的結構

較大電感值,耐極大電流

扁平線繞組,實現低直流電阻

低磁損耗,低 ERS,小寄生電容

溫度上升電流和飽和電流受環境的影響較小

工作溫度: -40℃ ~125℃ .

主要應用于大電流的工作環境,如充電樁、工業控制等

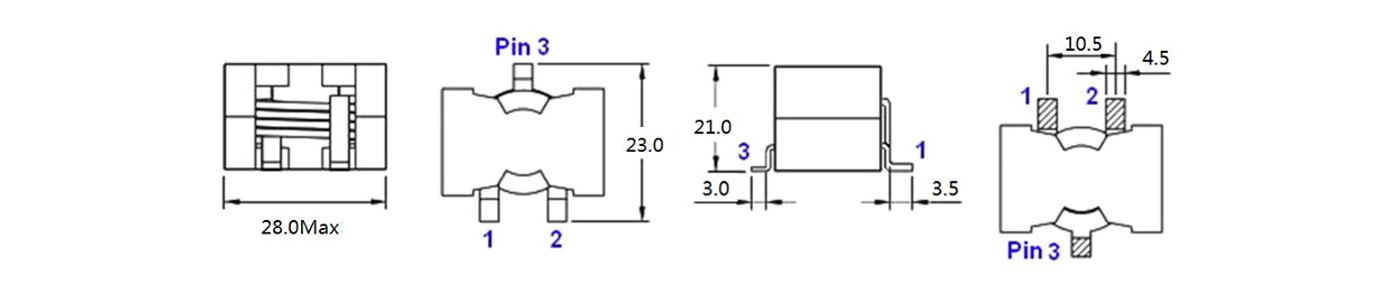

外觀尺寸Outline dimension

DLQ2918

外觀參數Exterior size / 單位:mm

◆  尺寸參數詳情見上方圖片標注:

電氣特性Electrical / 單位:mm

型號/NO

L(0A)

DCR(mΩ)

Irms

(Amperes)

Isat

(Amperes)

PDF

DLQ2918-2R7M
2.7
1.7
42
170
DLQ2918-3R9N
3.9
1.8
32
150
DLQ2918-4R7M
4.7
1.9
29
120
DLQ2918-6R2M
6.2
2.1
28
110
DLQ2918-7R5M
7.5
2.3
23
100
DLQ2918-100M
10.0
2.5
22
92
DLQ2918-120M
12.0
2.6
21
65
DLQ2918-220M
22.0
2.8
15
28

注釋

■  K表示電感值的公差為±10%,M表示電感值的公差為±20%

■  K said inductance tolerance is ±10%, M said inductance tolerance is ± 20%

■  所有數據基于環境溫度25℃條件下測試

■  All data is based on testing at an ambient temperature of 25 ℃

■  本頁面未能錄入全部或最新的數據,請您在訂購前向本公司咨詢精準參數及樣品。

■  We were unable to input all or the latest data on this page. Please consult our company for accurate parameters and samples before placing an order

■  測試條件:100KHZ/0.1V

■  Test conditions: 100KHZ/0.1V

提醒

■  保存條件:溫度 5~40°C,相對濕度小于等于 70%。

■  Storage conditions: Temperature between 5-40 ° C, relative humidity less than or equal to 70%.

■  產品儲存期不建議超過 12 個月

■  The storage period of the product is not recommended to exceed 12 months
